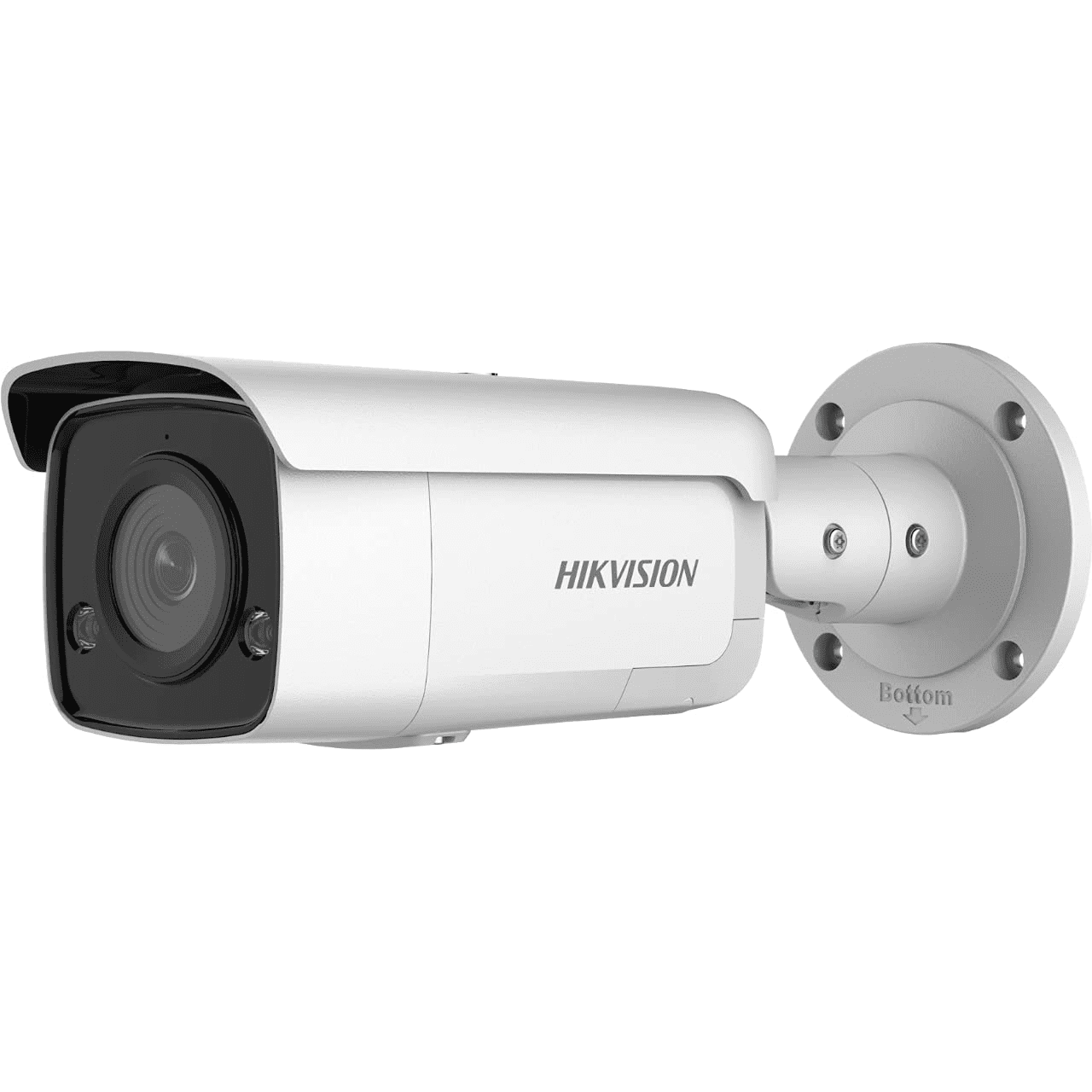

DS-2CD2T46G2-ISU/SL 4 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera

Description Data Sheet amera Image Sensor 1/3″ Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV 2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123° 4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98° 6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62° Lens Mount M12 Iris Type Fixed Aperture F1.4 DORI DORI 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m Illuminator Supplement Light Type IR Supplement Light Range Up to 60 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.265 /H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Type Mono sound Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0 , Firefox 52.0 , Edge 89 Local service: Chrome 57.0 , Firefox 52.0 , Edge 89 Image Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone Yes Built-in Speaker Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:2.2 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 10 Ω, interface type: non-equilibrium Alarm Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Reset Key Yes Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning Deep Learning Function Face Capture Yes General Power 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max: 12 W Dimension Ø105 mm × 287.6 mm (Ø4.1″ × 11.3″) Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 7.5″ × 7.1″) Weight Approx. 1135 g (2.5 lb.) With Package Weight Approx. 1624 g (3.6 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 Am 1: 2009 Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 Am 1: 2009 Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)
