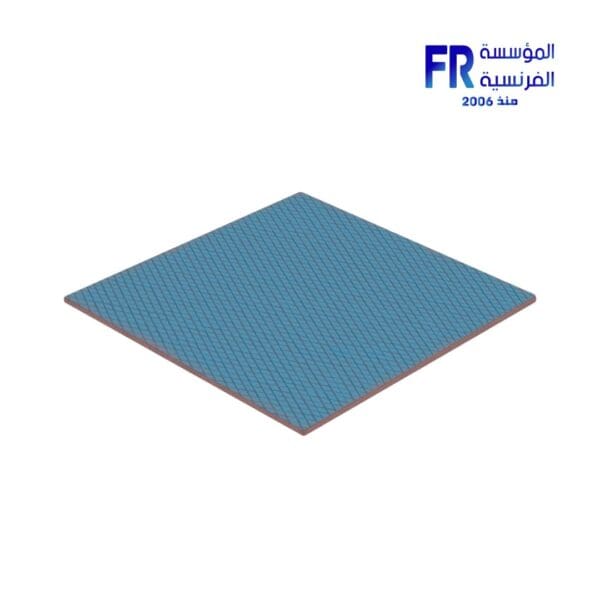

Thermal Grizzly Minus Pad Extreme 100x100x2.0mm Thermal Pad

Thermal Grizzly Minus Pad Extreme 100x100x2.0mm Thermal Pad Thermal Grizzly Minus Pad Extreme 100x100x2.0mm Thermal Pad SPECIFICATIONS: Color : Blue, Pink Degree of Hardness : Shore 00-65 Density : 3.38 g/cm³ Electrically Insulating : Yes (8KV/mm ASTM D149) Flammability : V-0 Operating Temperature : -100°C to 200°C Size : 100 x 100 mm Thickness : 2 mm Typical Height Tolerance : ±0.1 mm Product information “Minus Pad Extreme – 100 x 100 mm – 2 mm” The minus pad extreme thermal pad is silicone based with modelling clay like consistency. This allows a perfect surface shaping with maximum possible compression. The minus pad extreme is electrically insulating. Due to the consistency only one-time use is recommended. The thermal conductivity was improved by about 260 % over the minus pad 8 which allows best cooling for tough cooling operations such as voltage regulators and memory ICs. Most excellent thermal conductivity No bleeding long-term stability high compression rate The minus pad extreme is available in size 120 x 20 mm and 100 x 100 mm with thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm. 1. Color: Colors Available: Blue, Pink The product comes in two vibrant colors, offering aesthetic versatility and visual distinction for various applications. 2. Degree of Hardness: Hardness: Shore 00-65 Measured on the Shore scale, this indicates the material is very soft and highly flexible. A Shore 00-65 rating ensures excellent elasticity, making it ideal for applications requiring comfort and adaptability. 3. Density: Density: 3.38 g/cm³ The material has a relatively high density, contributing to its durability and robustness while maintaining flexibility. 4. Electrical Insulation: Insulation: Yes (8KV/mm ASTM D149) The material is electrically insulating with a dielectric strength of up to 8 kilovolts per millimeter (8KV/mm) as per ASTM D149 standards. This ensures reliable protection against electrical discharge, making it suitable for sensitive electronic or electrical applications. 5. Flammability: Flame Resistance Rating: V-0 The V-0 rating (per UL94 standards) means the material is highly flame-resistant. It will self-extinguish quickly when exposed to flames and does not drip molten particles, ensuring safety in fire-prone environments. 6. Operating Temperature: Temperature Range: -100°C to 200°C The material can withstand extreme temperatures, from freezing cold (-100°C) to intense heat ( 200°C). This thermal stability makes it suitable for use in harsh environmental conditions. 7. Size: Dimensions: 100 × 100 mm The sheet has a square shape with equal length and width of 100 mm, providing a compact yet functional size for precise applications. 8. Thickness: Thickness: 2 mm With a thickness of 2 mm, the material offers a balance between flexibility and durability, making it suitable for a wide range of applications. 9. Typical Height Tolerance: Tolerance: ±0.1 mm The material is manufactured with strict precision, ensuring a consistent thickness within a tolerance of ±0.1 mm. This level of accuracy is critical for applications requiring exact specifications. Key Features: Vibrant Colors: Available in blue and pink for aesthetic appeal or color-coding purposes. Soft and Flexible: Shore 00-65 ensures high elasticity and adaptability. High Density: 3.38 g/cm³ provides durability and robustness. Electrically Insulating: Protects against electrical discharge with a dielectric strength of 8KV/mm. Flame-Resistant: V-0 rating ensures safety in fire-prone environments. Wide Temperature Range: Operates effectively from -100°C to 200°C. Compact Size: 100 × 100 mm dimensions make it versatile for small-scale applications. Precision Thickness: 2 mm with a tolerance of ±0.1 mm ensures accuracy and reliability. Potential Applications: Electrical Insulation: Ideal for protecting sensitive components in electronics and electrical equipment. Industrial Uses: Suitable for machinery or tools that require flame resistance and thermal stability. Medical Devices: Its softness and electrical insulation properties make it useful in medical or laboratory settings. Gaskets and Seals: Can be used as a sealing material in small devices due to its flexibility and durability. Creative Design: The vibrant colors (blue and pink) make it suitable for creative or decorative purposes in product design. Precision Applications: The ±0.1 mm tolerance ensures suitability for applications requiring exact specifications. Conclusion: This blue and pink rubber sheet is a versatile, durable, and precisely manufactured material, combining softness, flame resistance, electrical insulation, and thermal stability. Its compact size (100 × 100 mm), 2 mm thickness, and tight tolerance (±0.1 mm) make it ideal for precision applications across industries such as electronics, medical, industrial manufacturing, and creative design.
