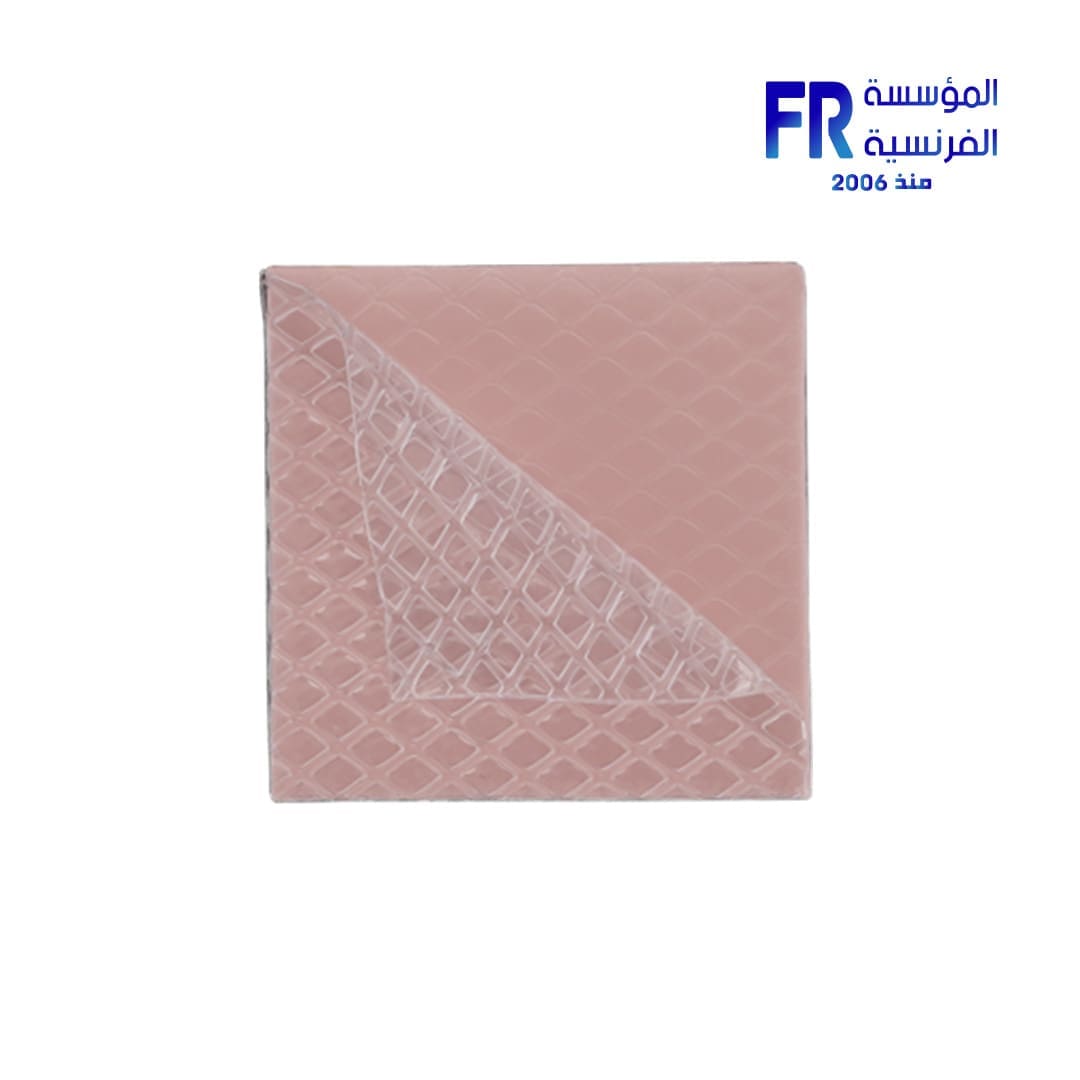

Thermal Grizzly Minus Pad 8 30x30x1.0mm Thermal Pad

Thermal Grizzly Minus Pad 8 30x30x1.0mm Thermal Pad Thermal Grizzly Minus Pad 8 30x30x1.0mm Thermal Pad SPECIFICATIONS: Color : Pink Degree of Hardness : Shore 00-60 Electrically Insulating : Yes (8KV/mm ASTM D149) Flammability : V-0 Operating Temperature : -100°C to 250°C Size : 30 x 30 mm Thickness : 1 mm Product information “Minus Pad 8 – 30 x 30 mm – 1 pc. – 1 mm” The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses. The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer. The lightest of touches is enough to attach them optimally. All pads are ecofriendly and RoHS-compliant. High thermal conductivity High compressibility Electrical insulation The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm. 1. Color: Color: Pink. The product features a pink color, making it suitable for applications that require aesthetic appeal or visual distinction. 2. Degree of Hardness: Hardness: Shore 00-60. Hardness is measured using the Shore scale, which evaluates the softness or firmness of a material. A value of “00-60” indicates that the material is very soft and highly flexible, making it ideal for applications requiring high elasticity. 3. Electrical Insulation: Insulation: Yes (8KV/mm ASTM D149). The material is electrically insulating with a dielectric strength of up to 8 kilovolts per millimeter (8KV/mm) according to ASTM D149 standards. This means it prevents electrical current from passing through, making it suitable for applications requiring protection against electrical discharge. 4. Flammability: Flame Resistance Rating: V-0. A V-0 rating (per UL94 standards) means the material is highly flame-resistant. When exposed to flames, it will self-extinguish quickly without dripping molten particles. This makes it safe for use in environments where fire hazards may exist. 5. Operating Temperature: Temperature Range: -100°C to 250°C. The material operates efficiently across an extensive temperature range, making it suitable for extreme environments, whether extremely cold (-100°C) or extremely hot ( 250°C). This highlights its durability and thermal stability. 6. Size: Dimensions: 30 × 30 mm. The small size (30 mm × 30 mm) makes it ideal for precision applications or uses requiring limited space. 7. Thickness: Thickness: 1 mm. With a thickness of 1 mm, the material is thin yet retains its mechanical and electrical properties, making it lightweight and easy to install. Summary of Potential Applications: Electrical Insulation Applications: Due to its excellent insulation properties (8KV/mm), it can be used in electronic devices or electrical equipment to provide protection against electrical discharge. Industrial Applications: Its flame resistance (V-0 rating) and ability to withstand extreme temperatures (-100°C to 250°C) make it suitable for harsh industrial environments. Medical or Laboratory Applications: Its high flexibility (Shore 00-60) and electrical safety make it suitable for medical devices or laboratory equipment. Everyday Applications: It can be used as small rubber pads or to enhance aesthetic design due to its pink color. Key Features: Extremely flexible material (Shore 00-60), ideal for applications requiring high elasticity. Excellent electrical insulation (8KV/mm). Flame-resistant (V-0 rating). Operates effectively across a wide temperature range (-100°C to 250°C). Compact size (30 × 30 mm) and 1 mm thickness, making it suitable for precision applications. Conclusion: This pink rubber sheet is a versatile solution, combining high flexibility, excellent electrical insulation, flame resistance, and thermal stability. It is suitable for a wide range of applications, from electronics to industrial and medical uses.
