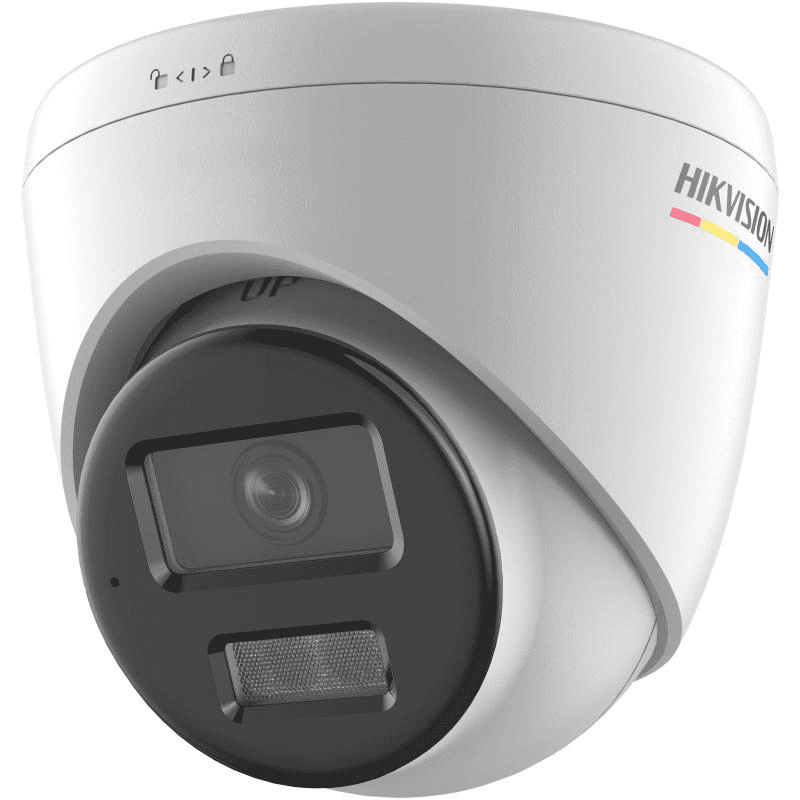

DS-2CD1347G2H-LIU 4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera

Description Camera Image Sensor 1/3″ Progressive Scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114° 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93° Lens Mount M12 Iris Type Fixed Aperture F1.0 DORI DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265 /H.265/H.264 /H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region of Interest (ROI) 1 fixed region for main stream Scalable Video Coding (SVC) H.264 and H.265 encoding Audio Audio Type Mono sound Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) User/Host Up to 32 users 3 user levels: administrator, operator, and user Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0 , Firefox 52.0 , Edge 89 Image Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Enhancement BLC,HLC,3D DNR Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone Yes Reset Key -F: Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center,send email,trigger capture General Power 12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W Material Metal & Plastic Dimension Ø110 mm × 93 mm (Ø4.33″ × 3.66″) Package Dimension 150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″) Weight Approx. 420 g (0.9 lb.) With Package Weight Approx. 656 g (1.4 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat, anti-banding, mirror, password protection,password reset by email Approval EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013 A1:2019, EN 50130-4: 2011 A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014 A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
