Online infrared moisture meter

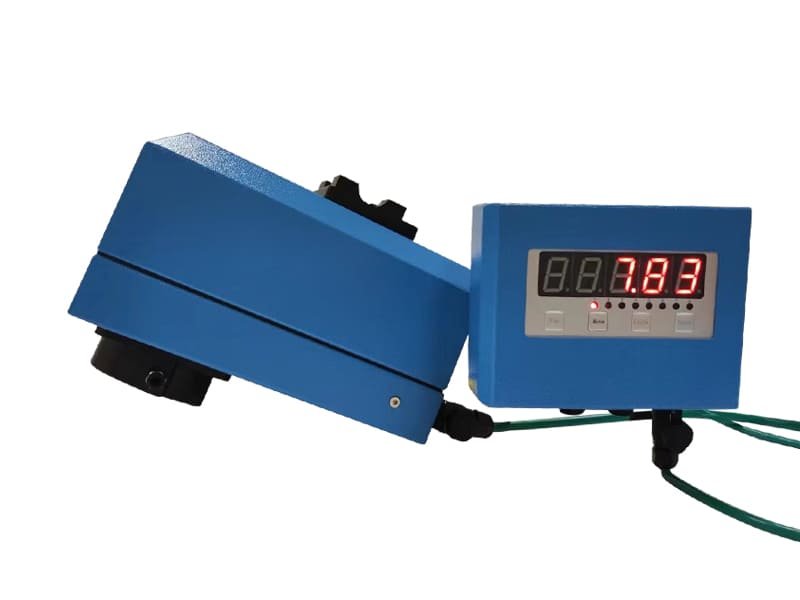

operational principle The principle of infrared light absorption: The molecular structure inside a substance, such as the oxygen hydrogen bond in water and the carbon hydrogen bond in organic matter, will absorb specific wavelengths of near-infrared light. At a specific wavelength, the reflected near-infrared energy is inversely proportional to the number of molecules it contains that absorb near-infrared radiation. The moisture meter is based on the principle that the near-infrared wavelength will be absorbed by water molecules, and analyzes the near-infrared energy changes of a specific wavelength. The online infrared moisture meter gathers multiple wavelengths of near-infrared beams onto the surface of the measured object, and the near-infrared beams reflected on the surface are received and processed by an infrared optical detection system. This infrared optical detection system can quickly process data. An embedded high-performance micro digital signal processing chip is used to process, store, and display the required data, with outstanding accuracy and stability. Instrument composition: The main components are the near-infrared probe and the host display. Near infrared probe: using imported photoconductive PBS detector, the detector is independently packaged, and external light does not interfere with the reference measurement; The reference measurement light of the optical path structure and the product measurement light use the same optical path to eliminate the influence of detection errors. Host display: using precision sampling chips, the host is equipped with both analog and digital outputs: RS485 (MODBUS-RTU standard protocol can be selected), DC 4-20MA Main technical indicators: Measurement range: 0-20% (material water absorption saturation is * large measurement range) Static accuracy: ± 0.1% Measurement accuracy: ± 0.2% (changes in material composition can cause measurement errors) Measurement channel: 50 Height range: 350mm ± 100mm Environmental temperature: 0-50 ℃ Environmental humidity: 5-90% Repeatability: 0.1% Response time: 0-60 seconds Filter range: 0-2.5% Power supply: AC 110-240V 50Hz/60Hz Power consumption: 250W Light interference: unaffected by changes in external environmental light, the probe does not require a light shield Temperature influence: With automatic temperature compensation, it is basically not affected by external temperature changes
