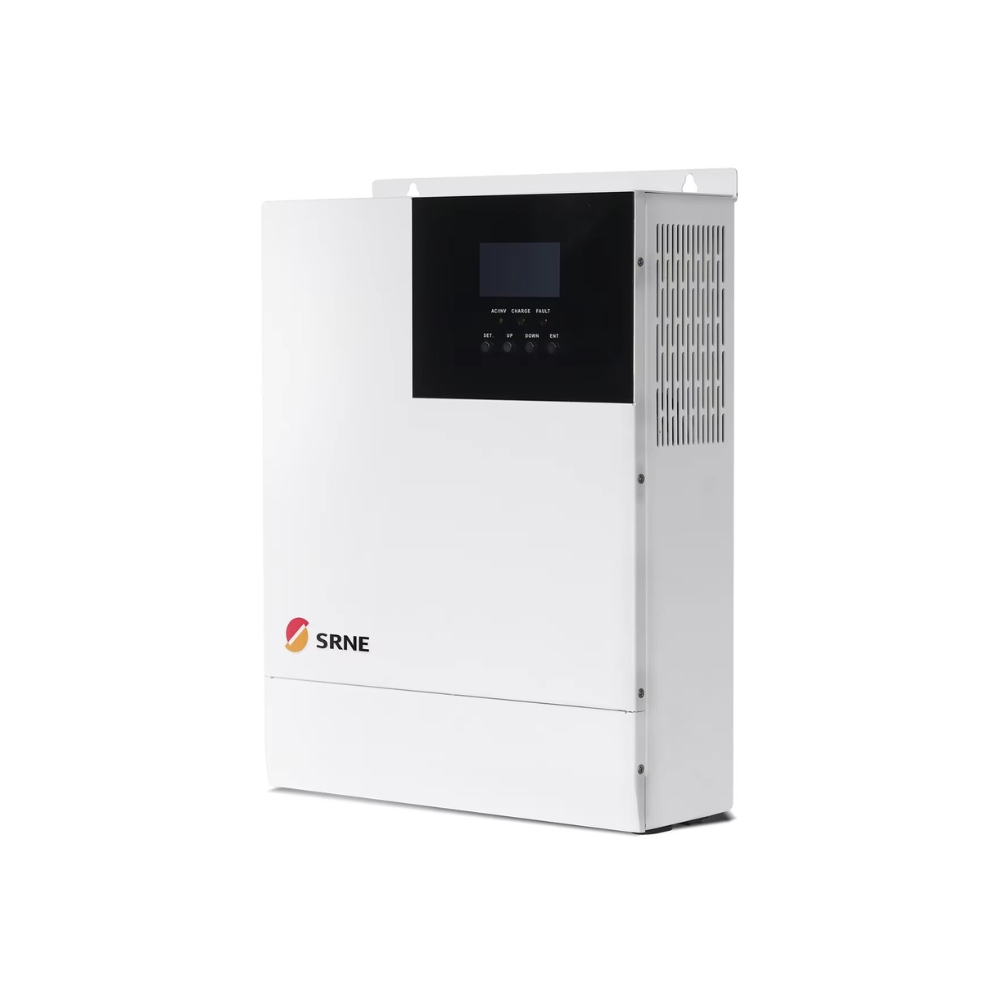

SRNE 5KW OFFGRID HYBRID INVERTER 48V PURE SINE WAVE

Description1 YEAR WARRANTYSRNE HF4850S80-H 5KW OFFGRID HYBRID SOLAR INVERTER  48V WITH MPPTThe SRNE HF4850S80-H is a 5kW hybrid solar inverter designed for off-grid and backup power systems. It supports 48V battery systems and includes built-in MPPT solar charging, AC charging, and hybrid operation. The inverter provides pure sine wave output, high efficiency, and supports lithium, lead-acid, and user-defined batteries.Features• 5kW pure sine wave hybrid inverter • Built-in MPPT solar charge controller • Supports lithium / lead-acid batteries • Hybrid solar grid charging • High MPPT tracking efficiency • Generator compatible input • Fast transfer time • Fan cooling system • RS485 / CAN communication • WiFi / GPRS optional monitoring • Transformerless design • Overload and protection functionsInverter Output• Rated Output Power: 5,000W • Peak Power: 10,000VA • Output Voltage: 230Vac (Single Phase) • Rated Frequency: 50/60Hz • Waveform: Pure Sine Wave • Transfer Time: 10ms (typical) • Motor Load Capacity: 4HPBattery• Battery Type: Lead-acid / Li-ion / User-defined • Rated Battery Voltage: 48V • Battery Voltage Range: 40V – 60V • Max Solar Charging Current: 80A • Max Grid Charging Current: 60A • Max Hybrid Charging Current: 80ASolar Input (MPPT)• Number of MPPT: 1 • Max PV Input Power: 5,500W • Max PV Input Current: 22A • Max PV Open Circuit Voltage: 500V • MPPT Voltage Range: 120V – 450VdcGrid / Generator Input• Input Voltage Range: 170V – 280Vac • Input Frequency Range: 50/60Hz • Bypass Overload Current: 40AEfficiency• MPPT Tracking Efficiency: 99.9% • Max Efficiency: 92%General Specifications• Dimensions: 426 × 322 × 126 mm • Weight: 10.9kg • Protection Degree: IP20 (Indoor) • Cooling Method: Fan Cooling • Operating Temperature: -10°C to 55°C • Humidity: 0 – 100% • Communication: RS485 / CAN / USB / Dry Contact • External Module: WiFi / GPRS (Optional) • Topology: TransformerlessCertification• RoHS • EN61000 • FCC Part 15 Class B • IEC 62109 • IEC 62477 • CSA C22.2 • PSE Certification
