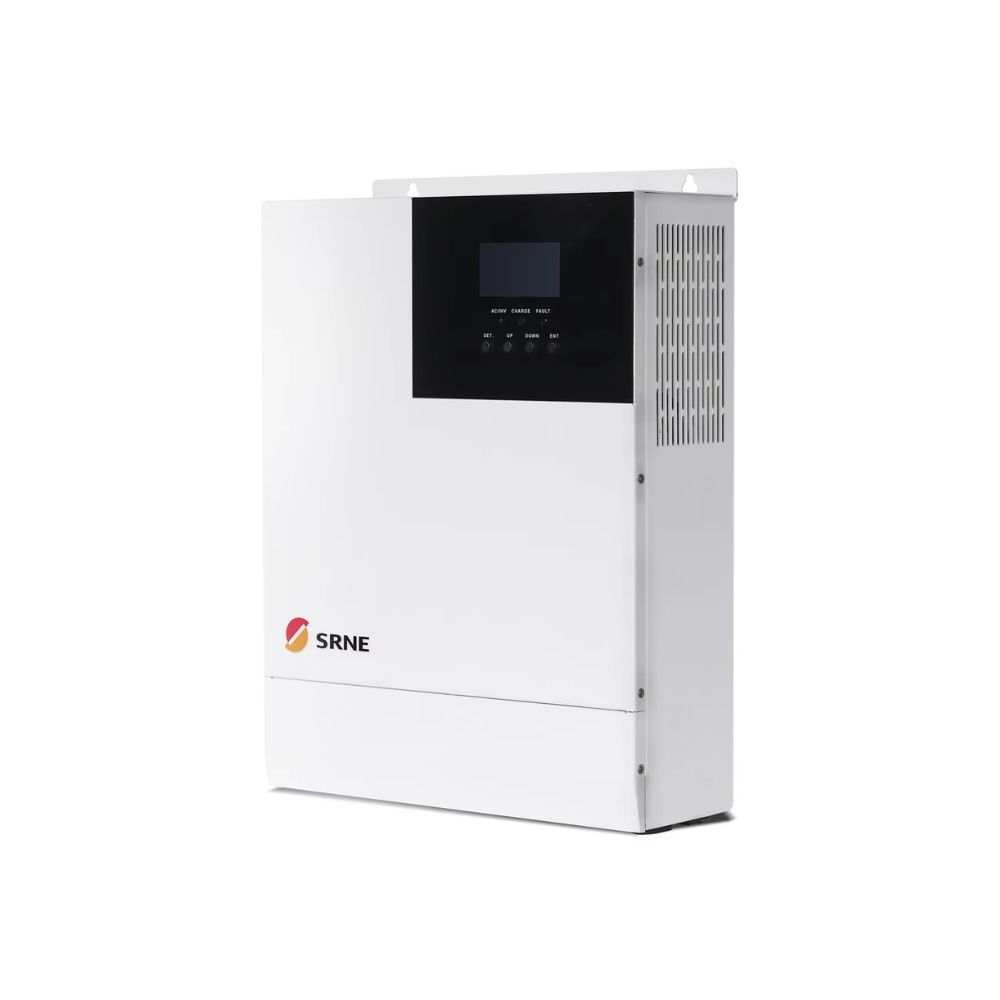

SRNE 3KW OFFGRID HYBRID INVERTER LOW-PV 24V PURE SINE WAVE

Description1 YEAR WARRANTYSRNE HF2430S60-100 3KW HYBRID SOLAR INVERTER 24V WITH MPPTThe SRNE HF2430S60-100 is a 3kW hybrid solar inverter designed for off-grid solar systems with 24V battery banks. It includes a built-in MPPT solar charge controller, AC charger, and hybrid charging capability. The inverter provides pure sine wave output and supports lithium, lead-acid, and user-defined batteries.Features• 3kW hybrid solar inverter • Built-in MPPT solar charge controller • Pure sine wave output • Supports lithium / lead-acid batteries • Hybrid solar grid charging • High MPPT tracking efficiency • Generator compatible • Fast transfer time • Fan cooling system • RS485 / CAN communication • WiFi / GPRS optional monitoring • Transformerless designInverter Output• Rated Output Power: 3,000W • Peak Power: 6,000VA • Output Voltage: 230Vac (Single Phase) • Rated Frequency: 50/60Hz • Waveform: Pure Sine Wave • Switch Time: 10ms (typical) • Motor Load Capacity: 2HPBattery• Battery Type: Lead-acid / Li-ion / User-defined • Rated Battery Voltage: 24V • Battery Voltage Range: 20V – 33V • Max Solar Charging Current: 60A • Max Grid Charging Current: 80A • Max Hybrid Charging Current: 140ASolar Input (MPPT)• Number of MPPT: 1 • Max PV Input Power: 1,600W • Max PV Input Current: 40A • Max PV Open Circuit Voltage: 108V • MPPT Voltage Range: 30V – 90VdcGrid / Generator Input• Input Voltage Range: 170V – 280Vac • Input Frequency Range: 50/60Hz • Bypass Overload Current: 30AEfficiency• MPPT Tracking Efficiency: 99.9% • Max Efficiency: 92%General Specifications• Dimensions: 378 × 280 × 103 mm • Weight: 6.8kg • Protection Degree: IP20 (Indoor) • Cooling Method: Fan Cooling • Operating Temperature: -10°C to 55°C • Humidity: 5% – 95% • Communication: RS485 / CAN / USB / Dry Contact • External Module: WiFi / GPRS (Optional) • Topology: TransformerlessCertification• RoHS • EN61000 • IEC 62109 • PSE Certification
