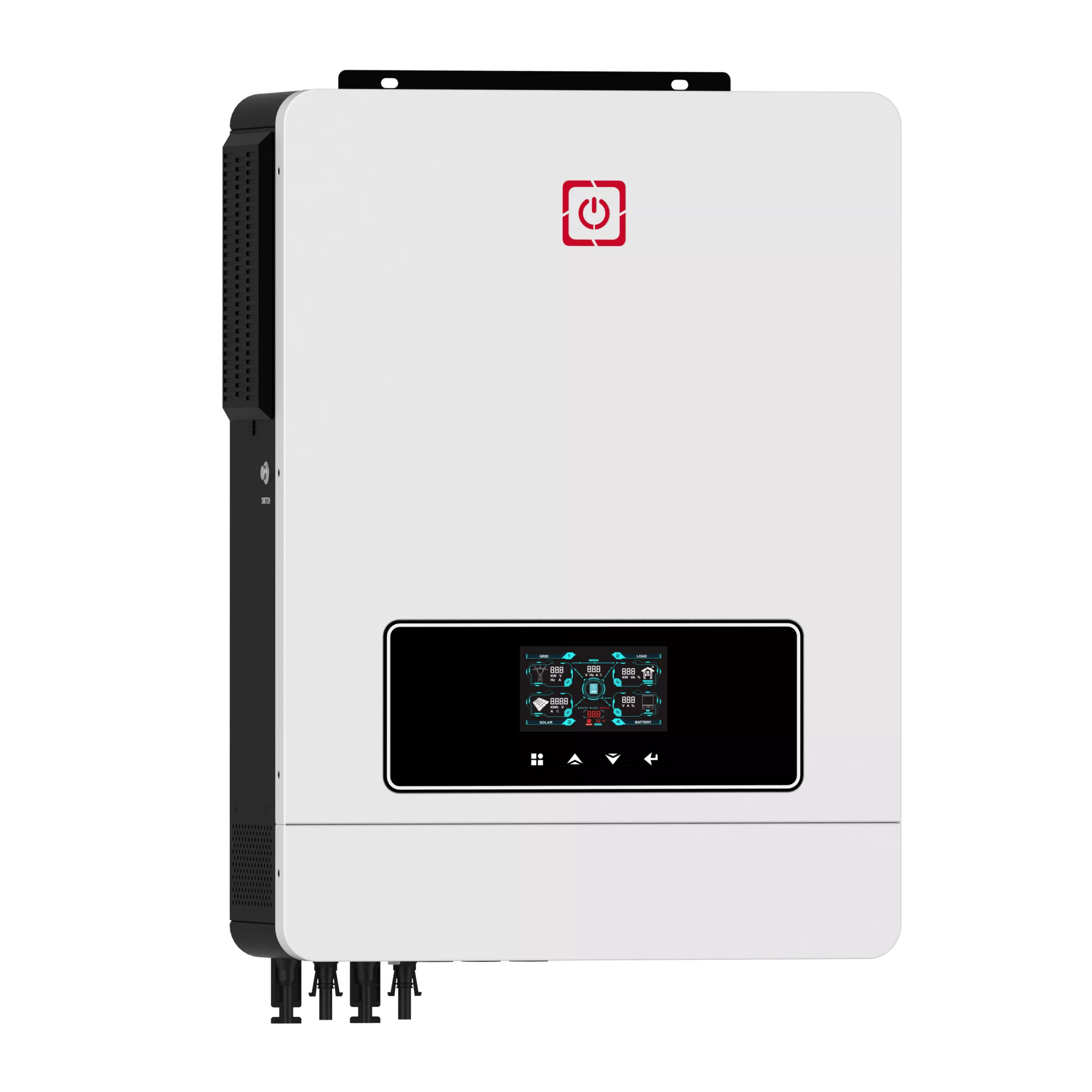

NEXT 6.2KW OFF GRID HYBRID INVERTER PURE SINE WAVE 48V

Description1 YEAR WARRANTYNEXT ECO-II 6.2KW OFF GRID HYBRID SOLAR INVERTERGeneral• Model: ECO-II-6.2KW • Phase: Single Phase • Maximum PV Input Power: 8000W • Rated Output Power: 6200W / 6200VAPV Input (DC)• Maximum DC Voltage: 500VDC • Start-up Voltage / Initial Feeding Voltage: 90VDC • MPPT Voltage Range: 60V – 450VDC • Maximum Input Current: 27AAC Input• AC Start-up Voltage / Auto Restart Voltage: 140VAC / 180VAC • AC Input Voltage Range: 170V – 280VAC • Maximum AC Input Current: 36.4AAC Output (Battery Mode)• Nominal Output Voltage: 220 / 230 / 240VAC • Efficiency: 94�ttery & Charger• Nominal Battery Voltage: 48VDC • Maximum Solar Charging Current: 120A • Maximum AC Charging Current: 100A • Maximum Charging Current: 120APhysical• Dimensions (D × W × H): 423 × 344 × 113 mm • Package Dimensions (D × W × H): 500 × 415 × 180 mmInterface• Communication Port: Optional RS232 / WiFi (WiFi data logger required)Environment• Operating Temperature: -10°C to 50°C
