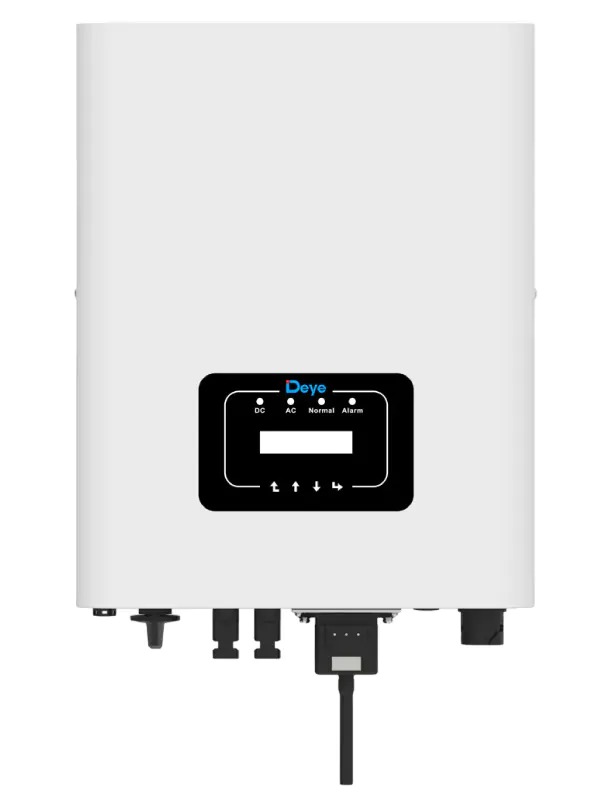

DEYE 10KW THREE PHASE STRING INVERTER

Description10 YEARS WARRANTYDEYE 10KW THREE PHASE STRING INVERTER (SUN-10K-G05-P)Input (DC Side):Max. DC Input Power: 13kWMax. DC Input Voltage: 1000VStart-up DC Input Voltage: 140VMPPT Operating Range: 120 – 850VMax. DC Input Current: 20A 20AMax. Short Circuit Current: 30A 30AMPPT Trackers: 2Strings per MPPT: 1Output (AC Side):Rated Output Power: 10kWMax. Active Power: 11kWNominal Output Voltage: 230V / 400VGrid Type: 3L / N / PERated Grid Frequency: 50 / 60HzOperating Phase: Three PhaseRated AC Grid Output Current: 15.2A / 14.5AMax. AC Output Current: 16.7A / 15.9AOutput Power Factor: 0.8 Leading to 0.8 LaggingGrid Current THD: <3� Injection Current: <0.5%Grid Frequency Range: 47 – 52Hz / 57 – 62HzEfficiency:Max. Efficiency: 98.3%Euro Efficiency: 97.5%MPPT Efficiency: >99%Protection Features:DC Reverse Polarity ProtectionAC Short Circuit ProtectionAC Output Overcurrent ProtectionOutput Overvoltage ProtectionInsulation Resistance ProtectionGround Fault MonitoringAnti-Islanding ProtectionTemperature ProtectionIntegrated DC SwitchRemote Software UploadRemote Change of Operating ParametersSurge Protection: DC Type II / AC Type IIGeneral Data:Dimensions (W × H × D): 330 × 457 × 185 mmWeight: 10kgInverter Topology: TransformerlessInternal Consumption: <1W (Night)Operating Temperature: -25°C to 45°CCooling Concept: Natural CoolingMax. Operating Altitude Without Derating: 2000mProtection Degree: IP65Permissible Humidity: 0 – 100%Display & Communication:Display: LCD1602Communication Interface: RS485 / RS232 / WiFi / LANConnection Type:DC Connection: MC-4 CompatibleAC Connection: IP65 Rated PlugStandards & Certification:Grid Standards: VDE4105, IEC61727, IEC62116, VDE0126, AS4777.2, CEI 0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149, NBR16150Safety / EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2
